Titanium Frame
Exceptionally high strength and unbelievably light with no flexure
PENTAMAG
Ultimate optical technology
The combination of optics and ergonomics allows for clear,
comfortable, and efficient operation in a neutral position
Ergonomics

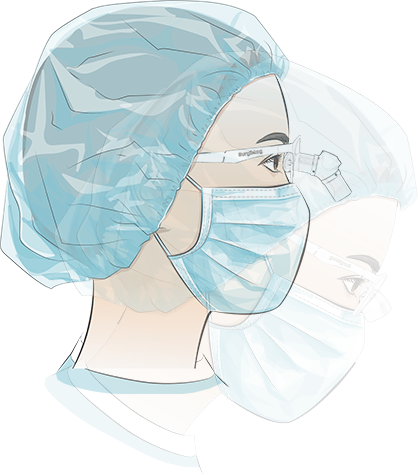

PENTAMAG changes the light path downward by 45 degrees
so that surgery is possible even in a neutral position.
This exceptional ergonomic design reduces the strain on the
cervical spine and relieves neck and back pain while alleviating eye strain.
With an average adult head weighting 4.5-5.4kg(99-11.9lb),
tilting the head down increases the gravitational pull
on the skull.
Long-term forward neck posture may lead to is a collection
of symptoms that often manifests as neck & back pain,
shoulder tension, stiffness and headaches.
Exceptional Clarity
To achieve superior optical performance, we applied a multi-layer coating to
reduce reflections on the lens, thereby increasing light transmission.
In addition, chromatic aberration is prevented by applying a low-dispersion lens.
Deep Depth of Focus
It has an improved depth of field and a large field of view to maintain sharp focus even
when the patient is moving or the user needs to adjust their posture.
Wide Field of View
The large field of view and striking depth of field allow easy visualization
of the entire treatment area.

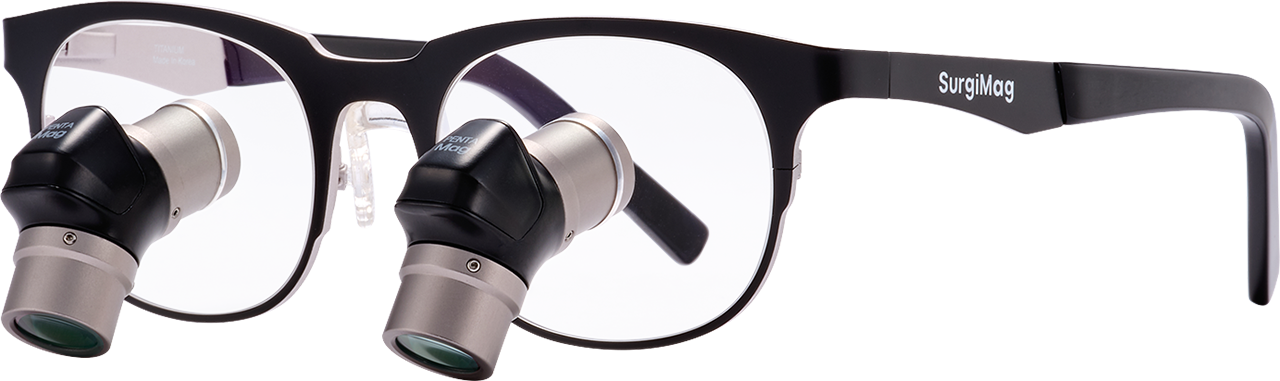

TECHNOLOGY OF OUR PRODUCT
+
Prescription Support
Built into both the carrier lenses and telescopes
+
Custom-crafted
Working distance, Pupil distance, Defection angle
+
High refractive index prism
Dielectric High refractive multi-layer prism coating on prism for the brig-htest images
+
Aluminum-Magnesium alloys
Light-weight,excellent specific strength, durability
+
Multi-Layer Coated lens
Anti-reflection high light transmittiance in a wide wavelength band from 400nm to 1,000nm : Bright and sharp images
+
Low dispersion Lens
Chromatic aberration is prevented by applying a low-dispersion lens
+
PENTAMAG Series
- Pain-free : Neutral posture enable relieves neck pain and back pain
- High light transmittance low chromatic aberration
- The depth of field is deep and even the periphery is clear, so it is easy to observe the target area
- Our personalized technology helps clinicians do their best
- Ultra light-weight, so allowing you to work comfortably all day long
| Magnification | Working Distance | Field Of View | Depth Of Field | Weight (Glasses frame included) |
|---|---|---|---|---|

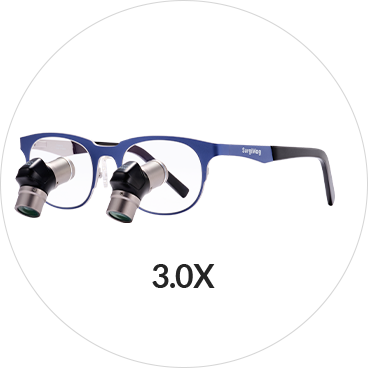

| 3.0X | 450mm | 75mm | 100mm | 52g |
| 500mm | 85mm | 105mm | ||
| 550mm | 95mm | 115mm | ||

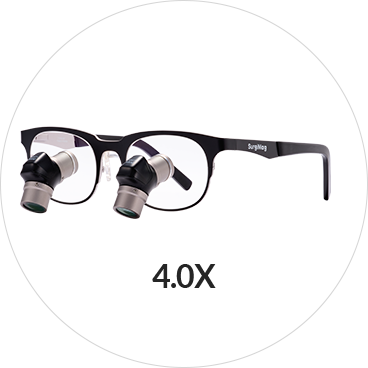

| 4.0X | 450mm | 75mm | 80mm | 52g |
| 500mm | 80mm | 90mm | ||
| 550mm | 90mm | 100mm | ||

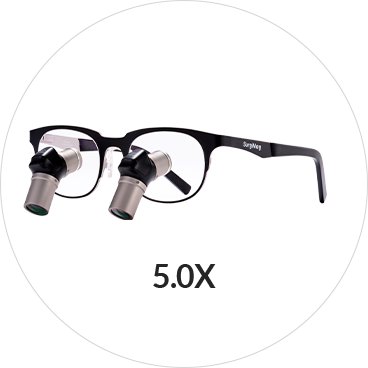

| 5.0X | 450mm | 65mm | 60mm | 53g |
| 500mm | 70mm | 65mm | ||
| 550mm | 80mm | 75mm | ||

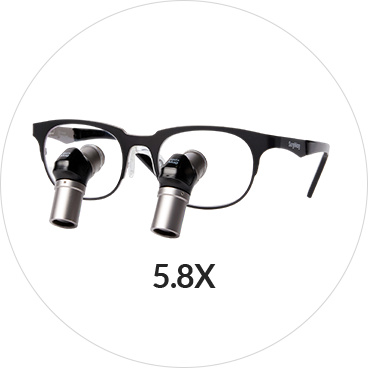

| 5.8X | 450mm | 65mm | 40mm | 53g |
| 500mm | 70mm | 45mm | ||
| 550mm | 80mm | 52mm | ||

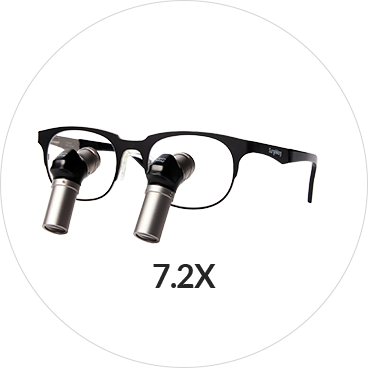

| 7.2X | 450mm | 55mm | 40mm | 53g |
| 500mm | 60mm | 45mm | ||
| 550mm | 62mm | 50mm |
